Crystal Unit
SMD Crystal UNITS 1.6*1.2*0.35mm (S1612A)
Features
- Ultra-thin thickness 0.35mm.
- Seam with vacuum Sealed for Ultra-small size.
- Automatic mounting is possible.
- Reflow is possible.
- RoHS compliant and lead free.
Specifications
| Type |
SMD Crystal UNITS 1.6*1.2*0.35mm
|
| Freq. range |
24.0 ~ 80.0MHz
|
| Vibration mode |
AT cut , Fundamental
|
| Frequency tolerance（at 25 °C） |
-/+10ppm , -/+30ppm , or specify
|
| Equivalent series resistance |
See table No.1
|
| Frequency stability over operating temperature range |
-/+10ppm , -/+30ppm , or specify
|
| Operating temperature range |
-10 ~ +60℃ , or specify
|
| Drive Level |
50uW Max.
|
| Shunt capacitance |
3.0pF Max.
|
| Load capacitance |
8pF, 10pF, or specify
|
| Aging |
-/+2ppm/year , -/+5ppm/year
|
| Min. Packing |
3,000pcs/Reel
|
Equivalent series resistance(ESR) Table No.1
| Frequency | Mode | ESR |
| 24.0~40.0 MHz | Fundamental | 150 ohms Max. |
| 41.0~60.0 MHz | Fundamental | 100 ohms Max. |
| 61.0~80.0 MHz | Fundamental | 60 ohms Max. |
- Specifications described are subject to change without notice for improvement.

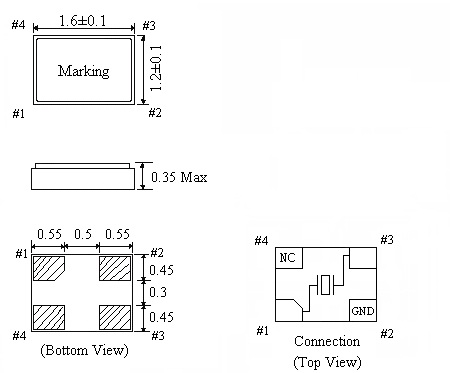

Dimensions (Unit:mm)
